6 Piston Big Brake Kit - F601
When upgrading brake pads is not enough to meet your braking demands, or if you want to add style to your car, a custom Big Brake Kit is an ideal choice.
Product Features:

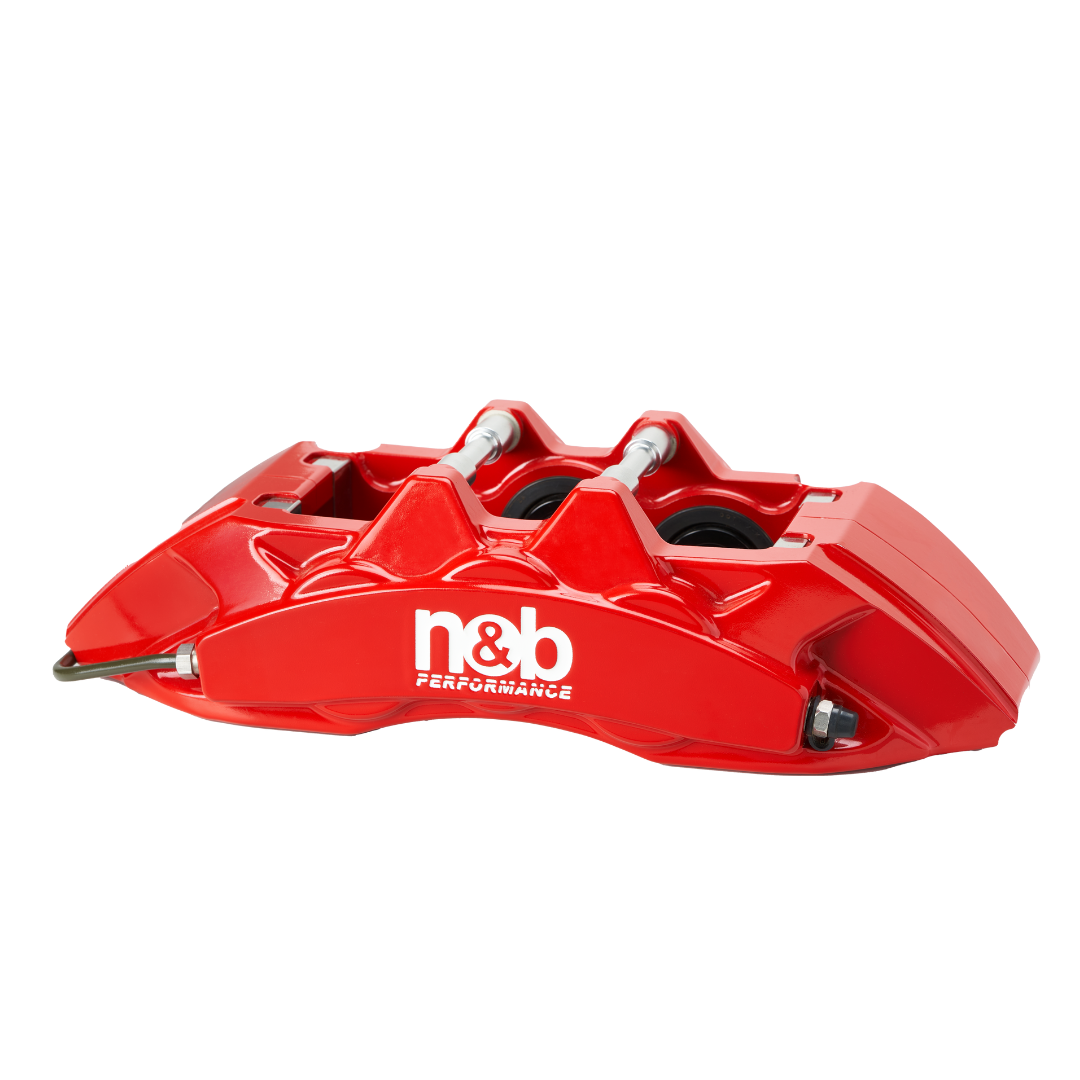

- 2-piece high-strength forged caliper body
- Dust boots design for compatibility with both street and trackday use
- Enhances braking performance while reducing unsprung weight
- Various customization options to create a unique, personalized style
- Using easily accessible brake pads specifications
- 100% manufactured in Taiwan

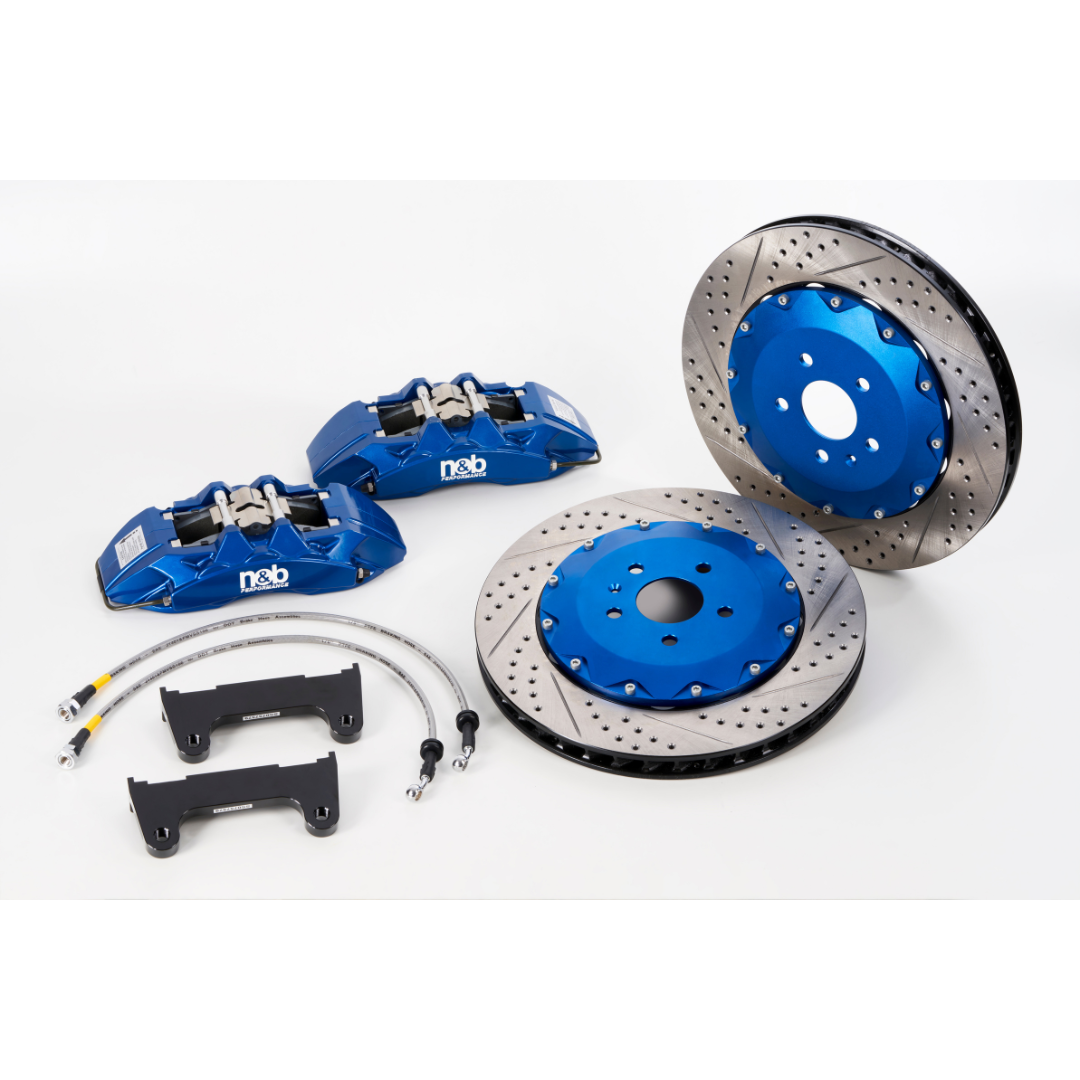

A set of Big Brake Kit includes:
- 2-piece forged calipers x 2
- 2-piece brake discs x 2
- Brake pad set (4 pieces) x 1
- Stainless steel braided brake lines x 2
- Caliper brackets x 2
- Other mounting hardwares
Compatible Sizes:
- 330x32mm (minimum wheel size: 17 inches)
- 345x32mm (minimum wheel size: 18 inches)
- 356x32mm (minimum wheel size: 18 inches)
- 365x32mm (minimum wheel size: 19 inches) F602
- 380x32mm (minimum wheel size: 19 inches) F602
Product Specifications:
- Caliper: 6061-T6 aluminum alloy
- Caliper dimension (LxHxW) mm: 302x82x139(F601), 310x82x139(F602)
- Caliper weight (no pads): 3.15 kg(F601), 3.2 kg(F602)
- Piston: 6061-T6 aluminum alloy
- Piston size: Ø38 x 2, Ø36 x 2, Ø32 x 2 mm
- Disc: FC25 cast iron alloy
- Disc anti-corrosion: Dacromet coating
- Center hat: 6061-T6 aluminum alloy
- Brake pad shape: CP5070D54
- Caliper bracket: Carbon steel with black electro-deposited anti-rust coating
- Brake lines: stainless steel braided Teflon hose
Customization Options:
- Caliper Color: Standard anodized colors. Additional cost options: anodized with clear coat, painted colors.
- Caliper Logo: Any painted color available.
- Discs: Standard 2-piece discs. Additional cost options: fully-floating discs.
- Center hat: Any anodized color available.
- Brake Pads: Standard street upgrade pads included. For other options, please contact us or local dealer.
Additional Notes:
- Caliper body comes with a 3-year warranty (excludes appearance).
- Discs and brake pads are consumables and come with a 3-month/5,000-kilometer warranty, whichever comes first.
- Other accessories are covered by a 1-year warranty.
- Warranty applies to normal street use only. Activities such as track testing, self-disassembly, etc., are not covered.
- Custom big brake kits are non-refundable once the order is confirmed. In case of component errors, replacements will be provided, but full kit returns are not available.
- For inquiries, please feel free to contact us or local dealer.
